Raspberry Pi 4 Temperature & Humidity Monitoring System (HTU21D)

---

Project Overview

The Temperature-Humidity-Sensor is the first module in a series of sensors for GNU/Linux intended for the construction of weather microstations that will be responsible for measuring air quality. This module monitors temperature and humidity in real time using a Raspberry Pi 4 and an HTU21D sensor. The sensor reads the environmental data, sends it via I2C, processes it with a C program, and displays the results on a web dashboard using Nginx.

---

Objective

The objective is to learn about the development of drivers to establish communication between a sensor (hardware) responsible for collecting data and a set of programs (software) that process this data, design a target compatible with a Raspberry Pi to create weather microstations responsible for monitoring air quality, and learn to design and implement electronic circuits.

In addition to the objective of completing the Delfin program stay and obtaining new skills and knowledge to further develop my professional career.

System Architecture

The module is designed as a simple data channel where we connect the sensor HTU21D to a web interface for real-time data visualization. As follows: HTU21D Sensor → I2C → C Program → JSON File → Nginx → Web Browser

The sensor collects temperature and humidity data, sends it via the I2C Protocol to a Raspberry Pi 4, which reads and converts it into temperature and humidity values using a C program,then stores them in a JSON file. Nginx serves this file along with the web interface (HTML), where a JavaScript script fetches the data and updates the displayed values in real time.

---

Materials

Hardware

• Raspberry Pi 4
• HTU21D sensor
• Jumper wires (female-to-female)
• MicroSD card with Raspberry Pi OS
• Power supply

Software

• Raspberry Pi OS / Debian
• GCC compiler
• i2c-tools
• libi2c-dev
• Nginx
• Git

---

Hardware Connections

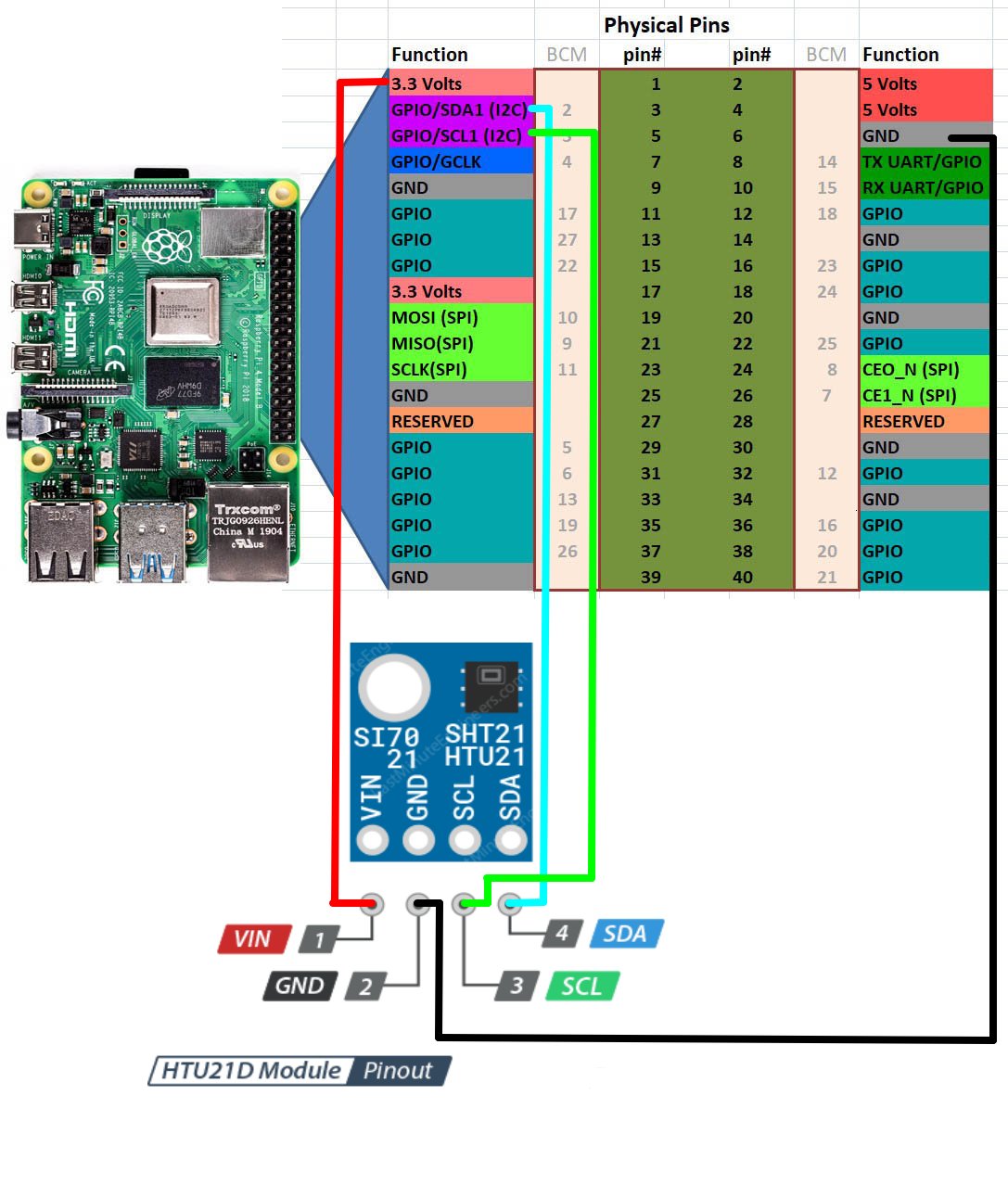

Pin Reference Images

---

Wiring Table

HTU21D	Raspberry Pi 4
VCC	3.3V
GND	GND
SDA	GPIO2 (SDA)
SCL	GPIO3 (SCL)

---

Deployment Guide (From Scratch)

1. Install Dependencies

sudo apt update
# Updates package list

sudo apt install gcc i2c-tools libi2c-dev nginx git
# Installs compiler, I2C tools, web server, and Git

---

2. Clone the Repository

git clone https://gitea.itmorelia.com/Verano-Delfin-2026/Temperature-Humidity-Sensor.git
# Downloads the project from the server

cd Temperature-Humidity-Sensor
# Enters the project folder

---

3. Enable I2C

sudo raspi-config
# Opens Raspberry Pi configuration menu

Go to:

Interfacing Options → I2C → Enable

sudo reboot
# Restarts system to apply changes

---

4. Verify Sensor

i2cdetect -y 1
# Scans I2C bus for connected devices

Expected:

0x40

---

5. Compile the Sensor Program

cd sensors/HTU21D
# Move to sensor source code

gcc main.c htu21d.c -o HTU21D -li2c
# Compiles the program and links I2C library

---

6. Deploy Web Files

sudo cp -r ~/basic-ui-dashboard/* /var/www/html/
# Copies project files to Nginx directory

sudo mkdir -p /var/www/html/data
# Creates folder for JSON output

---

7. Set Permissions

sudo chmod +x /var/www/html/sensors/HTU21D/HTU21D
# Allows execution of sensor program

sudo chown -R www-data:www-data /var/www/html
# Gives Nginx access to files

---

8. Run Sensor Loop

cd /var/www/html
# Go to web directory

while true; do ./sensors/HTU21D/HTU21D > data/HTU21D.json; sleep 5; done
# Continuously updates JSON every 5 seconds

---

9. Start Nginx

sudo systemctl start nginx
# Starts web server

sudo systemctl enable nginx
# Enables auto-start on boot

sudo systemctl status nginx
# Verifies server is running

---

10. Get Raspberry Pi IP

hostname -I
# Displays local IP address

Example:

192.168.1.100

---

11. Access from Another Computer

Open a browser and go to:

http://192.168.1.100

---

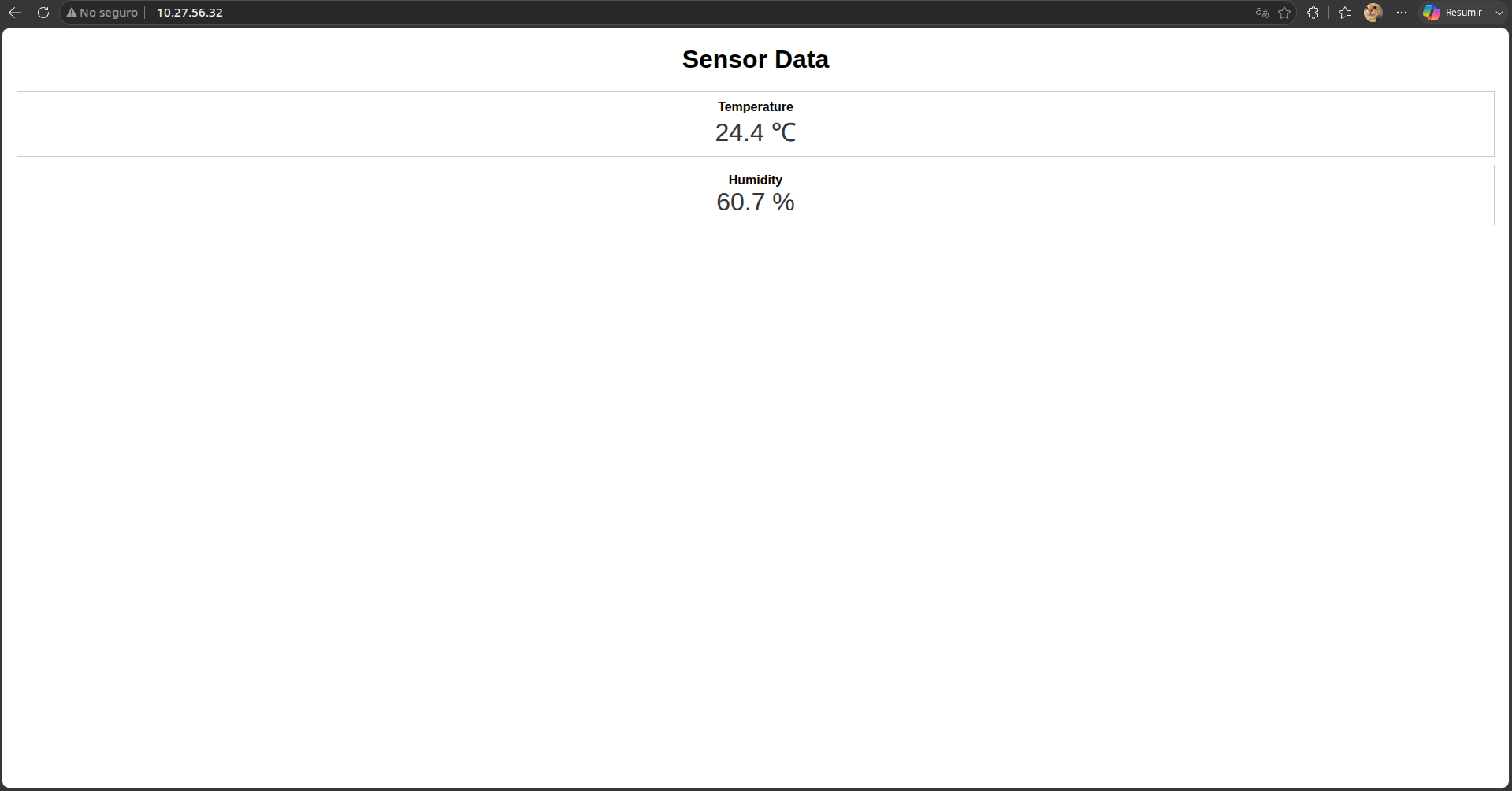

12. Result

---
