General procedure

  • Set Scale 100um -> 171 px
  • Set Measurements... bounding rectangle, display label, Decimals 4, Redirect none
  • Measure and Clear Measurements to produce a new and clear measuremens table
  • Use the Straight tool to draw a line thta fits into the decarburated area
  • Press ^+m to add the measurement into the table
  • Repeat the process at least 50 times

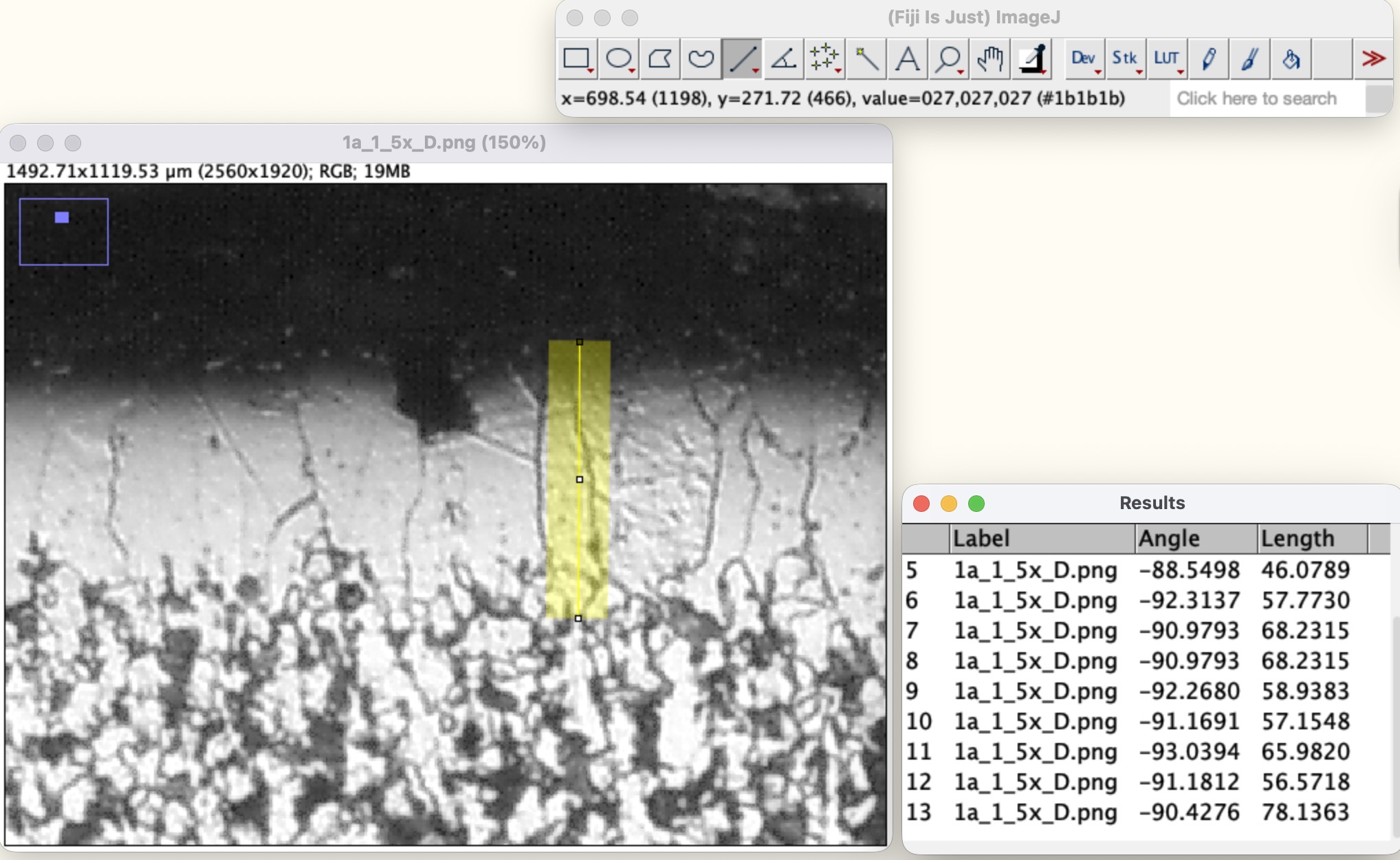

Example of measurements.
