Monitoring of Electrical and Thermal Parameters in a Metal Part

Introduction

This project aims to implement a data acquisition system for measuring temperature, voltage, and current in a metal part subjected to constant current, with the purpose of analyzing its electrical and thermal behavior in real time.

Methodology

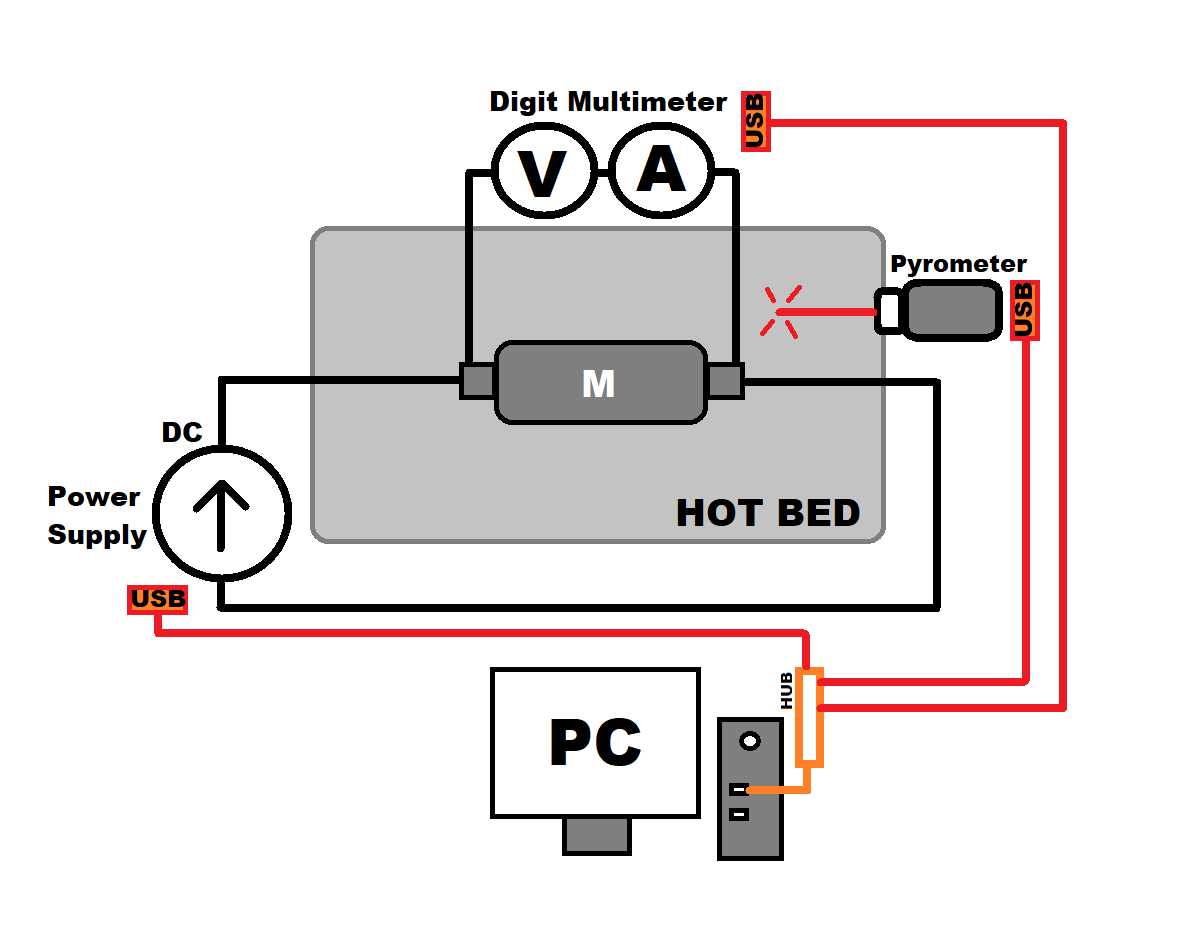

Representative drawing

The image shows the parts that make up the experiment.

Equipment

Equipment	Model	Description	Pickture

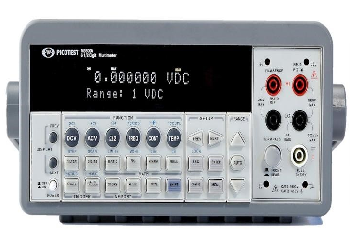

Digit Multimeter	M3500A	Multimeter used to measure voltage and current

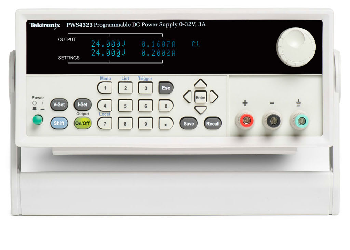

Programmable DC Power Supply 0-30 V	PWS4305	DC supply for powering the Pyrometer

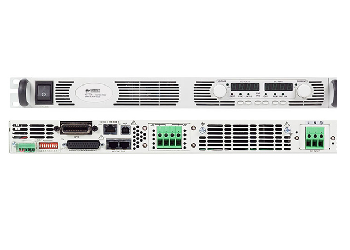

System DC Power Supply 150 V / 10 A	N5770A	DC source to heat the metal part

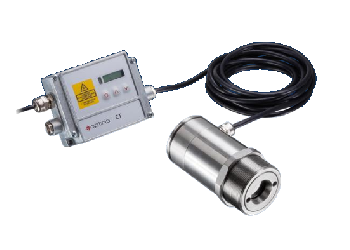

Pyrometer CTLaser LT	OPTCTLLTSF	Pyrometer, temperature sensor

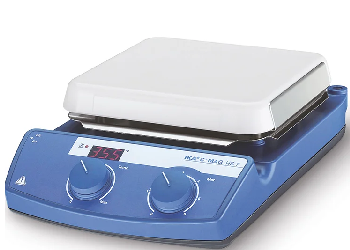

Hot plate	IKA C-MAG HS7	Heated bed with temperature control

Communication

To communicate the Digit Multimeter M3500A and the System DC Power Supply 150 V / 10 A a USB cable was used through the VISA protocol (Virtual Instrument Software Architecture) which is a standard for configuring, programming and debugging instrumentation systems that include GPIB interfaces. To do this, you first have to download the NI-VISA software on the computer you intend to use since Python is used to communicate through the Python wrapper pyvisa which requires the real VISA installation on the system. Otherwise an error will be thrown.
It is installed pyvisa:

pip install pyvisa

To find out if Pyvisa detects the instruments, run the following code in Python:

import pyvisa
rm = pyvisa.ResourceManager()
print(rm.list_resources())

If a series of codes are displayed in the Terminal, it means the instruments have indeed been detected and are responding with their data. Something like this:

'USB0::0x164E::0x0DAD::TW00013644::INSTR'

Communication with the Optris CTlaser pyrometer

Communication with the Optris CTlaser pyrometer was performed using the sensor's native binary protocol, using the Python programming language and the standard pyserial library for access to the COM port (virtual USB RS-232).
The sensor protocol consists of sending single-byte binary commands and receiving two-byte encoded responses, representing data such as temperature in uint16 format.
Libraries used:

import serial
import time

communication parameters
Baudrate	115200 bps
Bits de datos	8
Paridad	Ninguna
Bits de parada	1
Timeout	1 segundo

Command to get temperature

COMANDO_TEMPERATURA = bytes([0x01])

This command requests the process temperature (Tprocess). The sensor's response is 2 bytes, which must be interpreted using the following formula:

temperatura = ((byte1 * 256 + byte2) - 1000) / 10

All this information was obtained from the manufacturer's manuals which are attached to this repository.

Minimum code for pyrometer reading

import serial
import time

sensor = serial.Serial('COM9', baudrate=9600, timeout=1)
time.sleep(2)

sensor.write(bytes([0x01]))  #Comando para solicitar la temperatura
time.sleep(0.2)
respuesta = sensor.read(2)

if len(respuesta) == 2:
    byte1, byte2 = respuesta[0], respuesta[1]
    temperatura = ((byte1 * 256 + byte2) - 1000) / 10
    print(f"Temperatura: {temperatura:.1f} °C")
else:
    print("No se recibió respuesta válida.")

sensor.close()

Code

import tkinter as tk
from tkinter import messagebox
import pyvisa
import time
import csv
from datetime import datetime
import os
from decimal import Decimal
import serial

PUERTO = 'COM9'     #Puerto COM en donde se encuetra el Pyrometer
BAUDRATE = 115200
COMANDO_TEMPERATURA = bytes([0x01])  # Según protocolo binario del sensor

ID_M3500A = 'USB0::0x164E::0x0DAD::TW00013644::INSTR'           #Multimetro
ID_N5770A = 'USB0::0x0957::0x0807::N5770A-US11M7295J::INSTR'    #Fuente

rm = pyvisa.ResourceManager()

sensor = serial.Serial(
    port=PUERTO,
    baudrate=BAUDRATE,
    bytesize=serial.EIGHTBITS,
    parity=serial.PARITY_NONE,
    stopbits=serial.STOPBITS_ONE,
    timeout=1
)
time.sleep(2)

try:
    # Conectar al multímetro
    m3500a = rm.open_resource(ID_M3500A)
    m3500a.write('*RST')
    m3500a.write('*CLS')
    m3500a.write("CONF:VOLT:DC 100")  # Voltaje DC, rango fijo de 100 V
    m3500a.write("CONF:CURR:DC 10")   # Corriente DC, rango fijo de 10 A

    # Conectar a la fuente de poder
    fuente = rm.open_resource(ID_N5770A)
    fuente.write('*RST')
    fuente.write('*CLS')
    fuente.write('OUTP ON')

except Exception as e:
    messagebox.showerror("Error", f"Error en la conexión con los instrumentos:\n{e}")
    exit()

directorio = "Mediciones"
os.makedirs(directorio, exist_ok=True)

timestamp = datetime.now().strftime("%Y-%m-%d_%H-%M-%S")
archivo_csv = os.path.join(directorio, f"mediciones_{timestamp}.csv")

with open(archivo_csv, mode='w', newline='') as archivo:
    escritor = csv.writer(archivo)
    escritor.writerow(["Temperatura","Voltaje Medido (V)", "Corriente Medida (A)","Voltaje fuente","Corriente fuente","Fecha"])

##################################################### Lectura del multimetro
def actualizar_lecturas():
    try:
        # === Leer temperatura del sensor ===
        sensor.write(COMANDO_TEMPERATURA)
        time.sleep(0.2)
        respuesta = sensor.read(2)

        if len(respuesta) == 2:
            byte1, byte2 = respuesta[0], respuesta[1]
            temperatura = ((byte1 * 256 + byte2) - 1000) / 10
            label_temperatura.config(text=f"Temperatura: {temperatura:.1f} °C")
        else:
            temperatura = None
            label_temperatura.config(text="Temperatura: --- °C")

        m3500a.write('READ?')                                       # Lectura del multimetro
        voltaje = float(m3500a.read().strip())
        label_voltaje.config(text=f"Voltaje DC: {voltaje:.3f} V")

        fuente.write("VOLT?")                                       # Lectura de la fuente
        voltaje_fuente = float(fuente.read().strip())

        fuente.write("CURR?")
        corriente_fuente = float(fuente.read().strip())

##################################################### Registro en CSV
        fecha_actual = datetime.now().strftime("%H:%M:%S")
        with open(archivo_csv, mode='a', newline='') as archivo:
            escritor = csv.writer(archivo)
            escritor.writerow([temperatura ,voltaje, "", voltaje_fuente, corriente_fuente, fecha_actual])

    except Exception as e:
        label_temperatura.config(text="Temperatura: Error")
        label_voltaje.config(text="Voltaje DC: Error")
        label_corriente.config(text="Corriente DC: Error")
        print(f"Error al leer: {e}")

    # Repetir cada 500 ms
    ventana.after(500, actualizar_lecturas)

##################################################### Control de fuente
def aplicar_valores_fuente():
    try:
        v_set = entrada_voltaje.get()
        i_set = entrada_corriente.get()

        fuente.write(f"VOLT {v_set}")
        fuente.write(f"CURR {i_set}")

        #messagebox.showinfo("Configuración", "Valores aplicados correctamente.")
    except Exception as e:
        messagebox.showerror("Error", f"No se pudo configurar la fuente:\n{e}")

##################################################### Window
ventana = tk.Tk()
ventana.title("CONTROL Y MEDICIÓN")
ventana.geometry("300x250")

######## Lecturas

label_temperatura = tk.Label(ventana, text="temperaruta: --- °C", font=("Arial", 14))
label_temperatura.pack(pady=5)

label_voltaje = tk.Label(ventana, text="Voltaje DC: --- V", font=("Arial", 14))
label_voltaje.pack(pady=5)

label_corriente = tk.Label(ventana, text="Corriente DC: --- A", font=("Arial", 14))
label_corriente.pack(pady=5)

######## Control de fuente

frame_fuente = tk.Frame(ventana)
frame_fuente.pack(pady=10)

tk.Label(frame_fuente, text="Voltaje de salida (V):",font=("Arial",14)).grid(row=0, column=0, padx=5, pady=2)
entrada_voltaje = tk.Entry(frame_fuente, width=10)
entrada_voltaje.grid(row=0, column=1)
entrada_voltaje.bind('<Return>', lambda event: aplicar_valores_fuente())

tk.Label(frame_fuente, text="Corriente límite (A):",font=("Arial",14)).grid(row=1, column=0, padx=5, pady=2)
entrada_corriente = tk.Entry(frame_fuente, width=10)
entrada_corriente.grid(row=1, column=1)
entrada_corriente.bind('<Return>', lambda event: aplicar_valores_fuente())

actualizar_lecturas()
ventana.mainloop()
