PRACTICE, LabVIEW

INTRODUCION

This practice show the interface of an analog signal take off USB-6008 and view in LabVIEW

INTERFACE

In the interface we can view two graphs showing the analog signal capture of the USB-6008 controlled by the potentiometer.

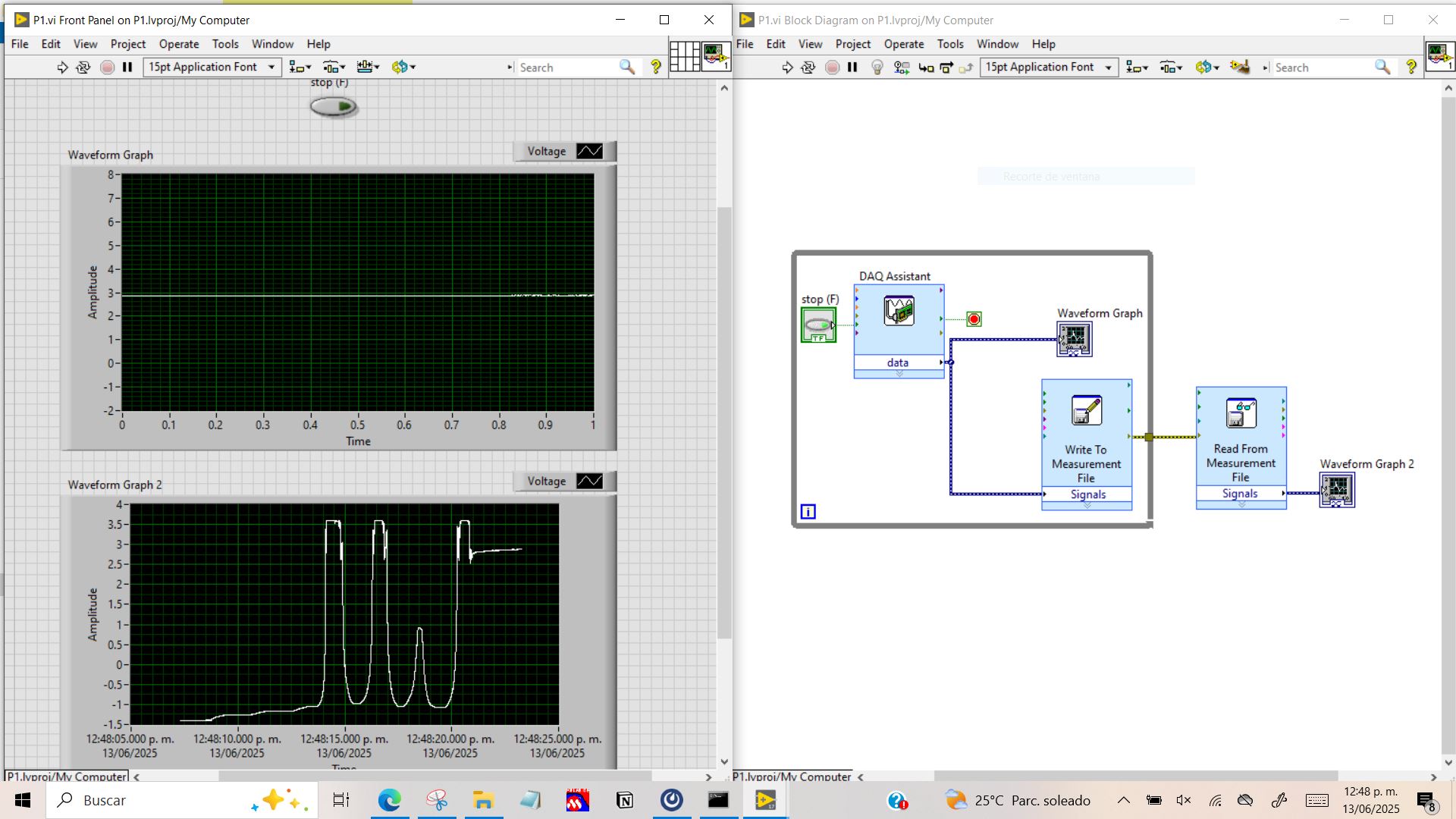

This picture shows the interface

CONNECTIONS

En las imagenes siguientes se pueden observar las conexines que se tienen que realizar para hacer el control de voltaje con el potenciometro.

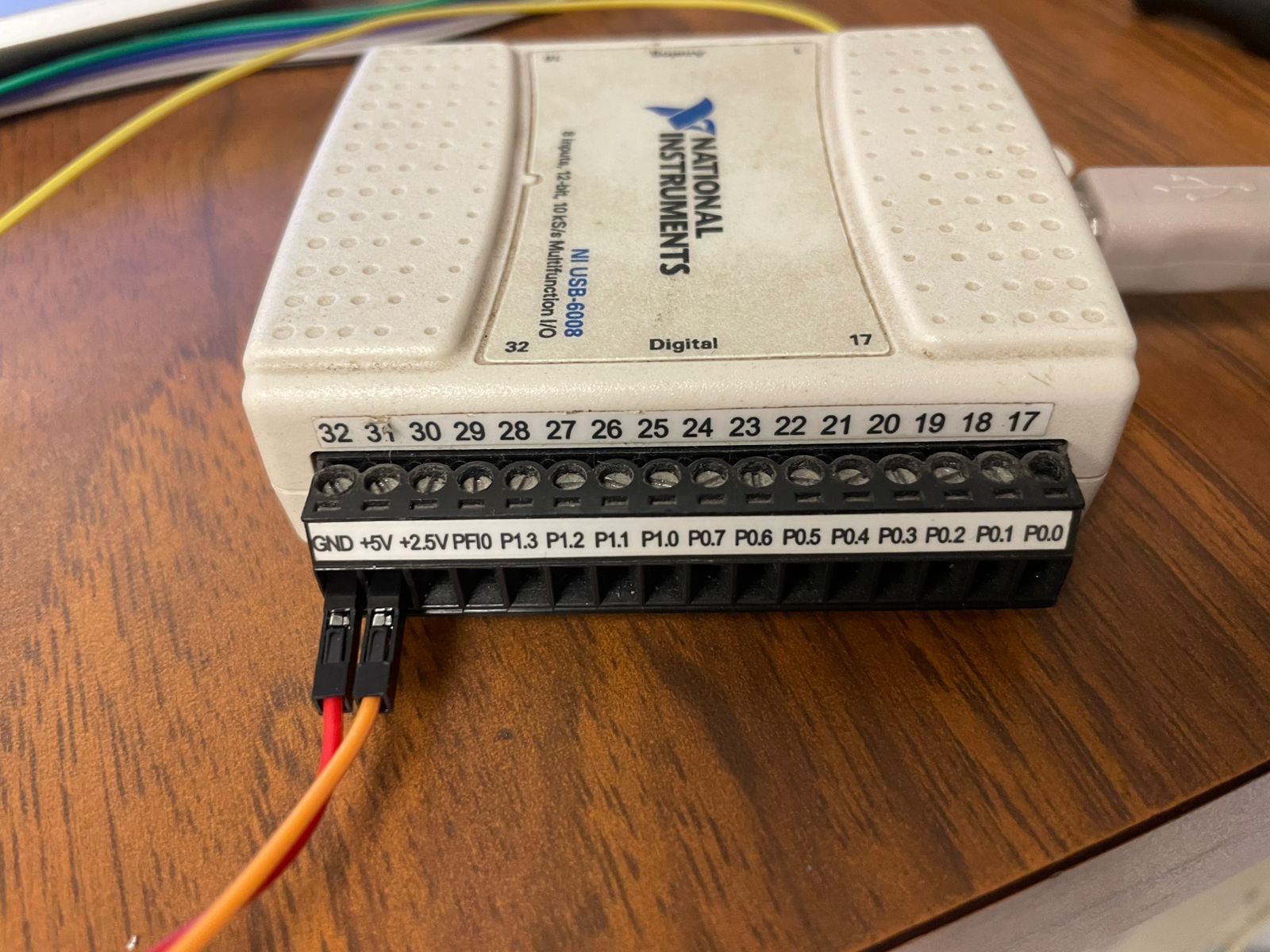

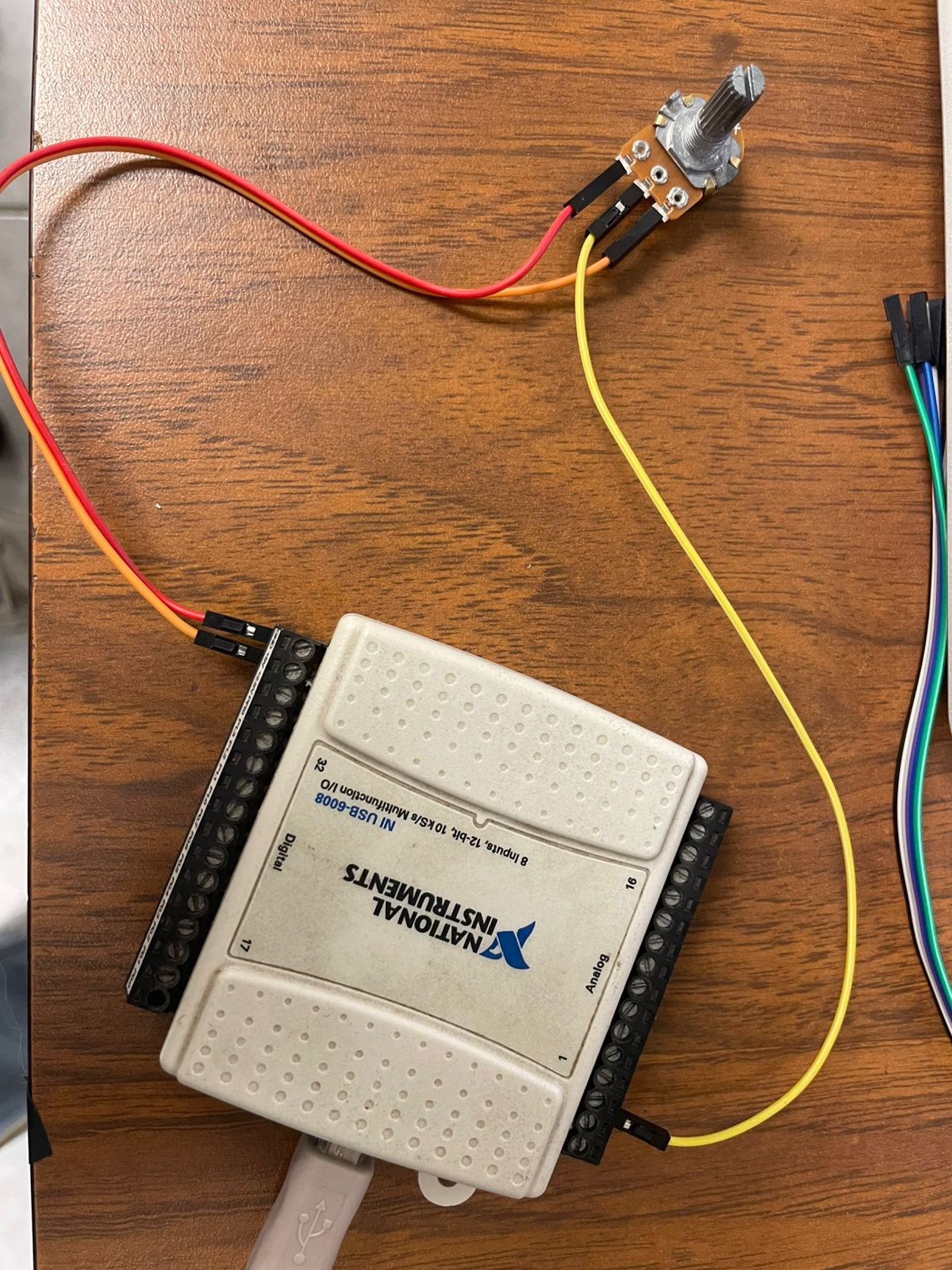

This pictures shows the connections of the practice

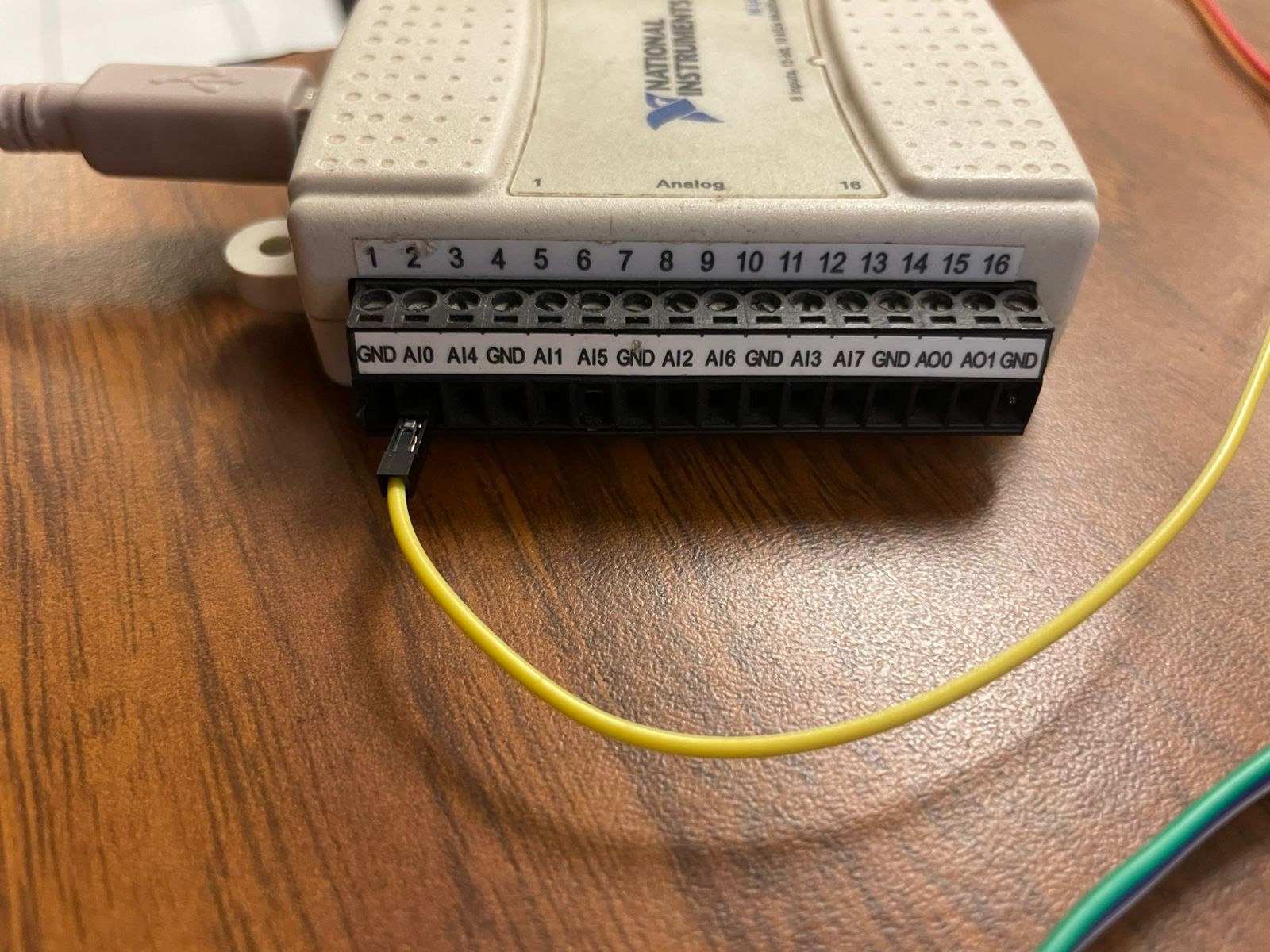

The first image shows the analog channel used, which corresponds to analog input channel 0 (AI0), as configured in the LabVIEW interface.
