Monitoring of Electrical and Thermal Parameters in a Metal Part

Introduction

This project aims to implement a data acquisition system for measuring temperature, voltage, and current in a metal part subjected to constant current, with the purpose of analyzing its electrical and thermal behavior in real time.

Methodology

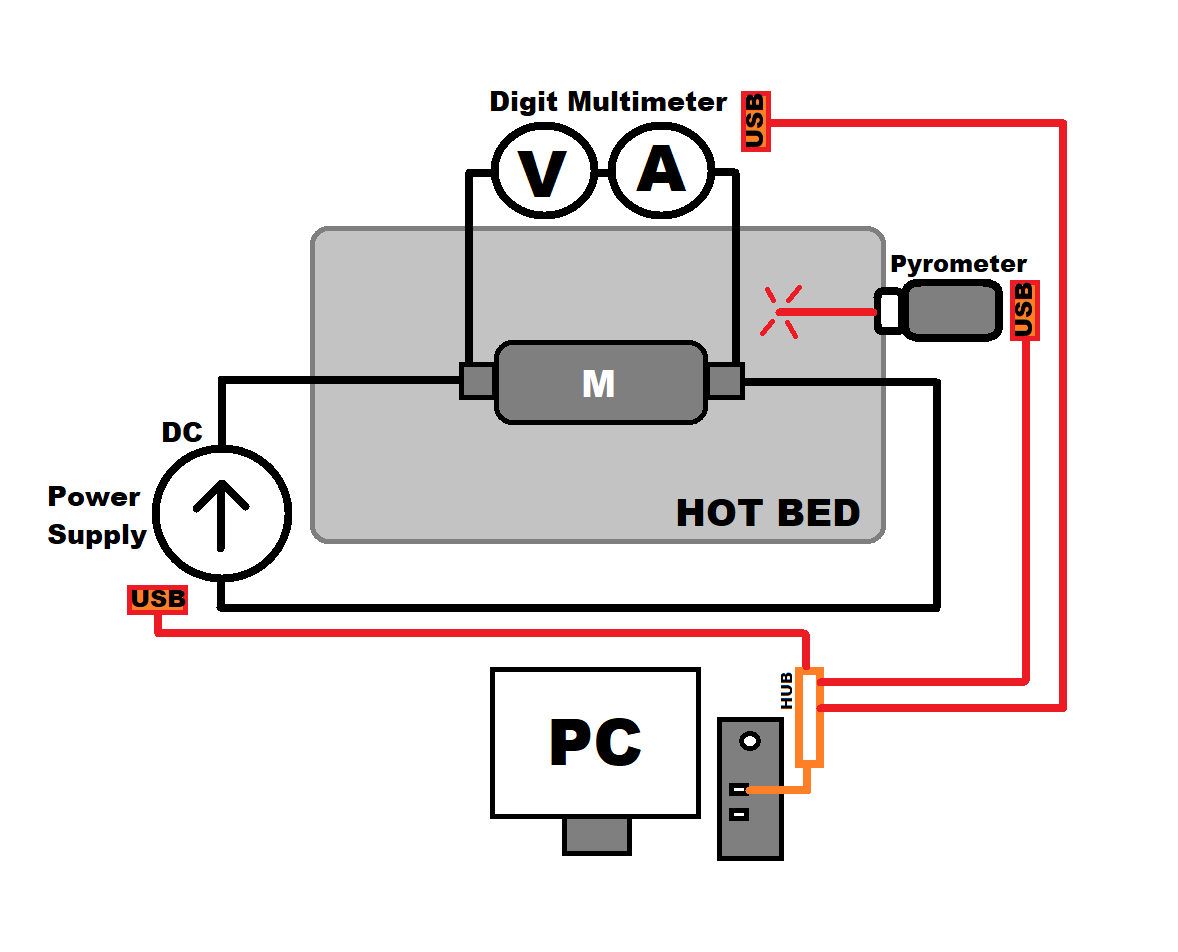

Representative drawing

The image shows the parts that make up the experiment.

Equipment

Equipment Model Description Pickture

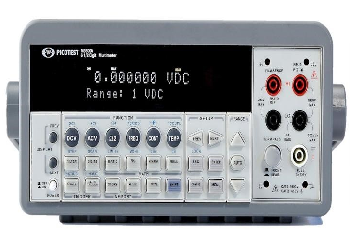

Digit Multimeter M3500A Multimeter used to measure voltage and current

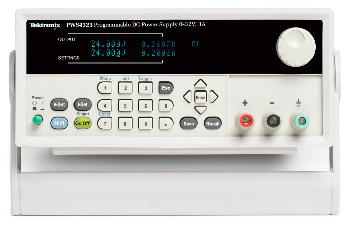

Programmable DC Power Supply 0-30 V PWS4305 DC supply for powering the Pyrometer

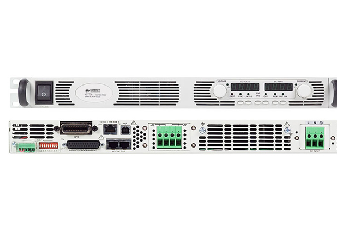

System DC Power Supply 150 V / 10 A N5770A DC source to heat the metal part

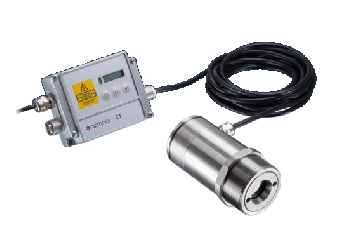

Pyrometer CTLaser LT OPTCTLLTSF Pyrometer, temperature sensor

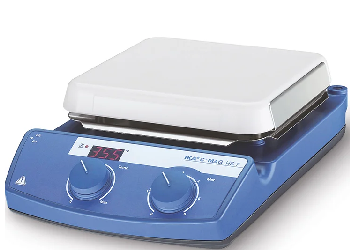

Hot plate IKA C-MAG HS7 Heated bed with temperature control

Comunicación

For the communication of the measuring equipment, it is intended to communicate via USB to a computer.
